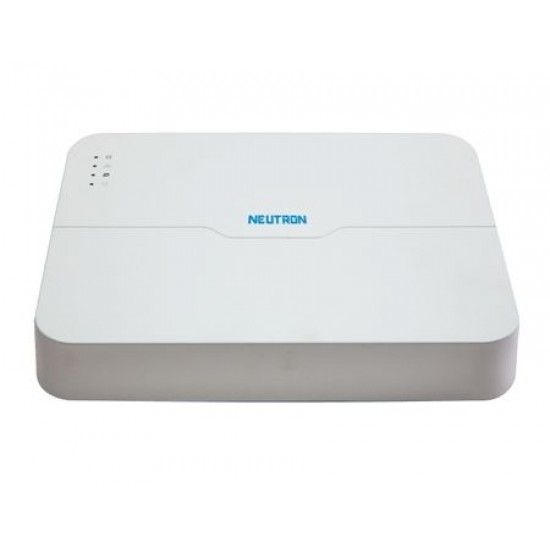

NEUTRON NVR301-16L-P8 DİJİTAL KAYIT CİHAZI
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
Model | NVR301-04L-P4 | NVR301-08L-P8 | NVR301-16L-P8 |
Video / Audio Input | |||
IP Video Input | 4-channel | 8-channel | 16-channel |
Two-Way Audio Input | 1-channel, RCA | ||
Network | |||
Incoming Bandwidth | 40Mbps | 60Mbps | 60Mbps |
Outgoing Bandwidth | 64Mbps | 64Mbps | 80Mbps |
Remote User | 128 | ||
Protocol | P2P, UPnP, NTP, DHCP, PPPoE | ||
Video / Audio Output | |||
HDMI / VGA Output | HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | ||
Record Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
Audio Output | 1-channel, RCA | ||
Simultaneous Playback | 4-channel | 8-channel | 16-channel |
Corridor Mode | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
Decoding | |||
Decoding format | Ultra 265, H.265, H.264 | ||
Live View / Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
Capacity | 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1 | ||
Hard Disk | |||
SATA | 1 SATA Arayüzü | ||
HDD Kapasite | 10 TB Kadar Yükseltilebilir | ||
Akıllı Video Analizi | |||
VCA Akıllı Analizler | Yüz Tanıma, Alan İhlali, Sınır İhlali, Ses Algılama, Fokus Bozulması Algılama, Sahne Değişikliği Algılama , Otomatik Takip | ||
VCA Akıllı Arama | Yüz Tanıma, Davranışa Göre Arama | ||
İstatiksel Analiz | Kişi Sayma | ||
Harici Arayüz | |||
Network Arayüzü | 1 RJ-45 10M/100M Kendinden Uyarlamalı Ethernet Arabirimi | ||
USB Arayüzü | Arka Panel:2 x USB2.0 | ||
PoE | |||
PoE Arayüzü | 4 Bağımsız 100 Mbps PoE Network Arayüzü | 8 Bağımsız 100 Mbps PoE Network Arayüzü | |
Güç Kaynağı | Max 30W Tek Port için Max 54W Toplam( 13.5W her biri için ) | Max 30W Tek Port için) Max 108W Toplam ( 13.5W her biri için ) | |
Desteklenen Standart | IEEE 802.3at, IEEE 802.3af | ||
Genel | |||
Güç Kaynağı | 48V DC Güç Tüketimi: ≤ 8 W( HDD olmadan ) | 52V DC Güç Tüketimi: ≤ 8 W( HDD olmadan ) | |
Çalışma Ortamı | -10°C ~ + 55°C ( +14°F ~ +131°F ), Nem ≤ 90% RH(yoğunlaşmayan) | ||
Boyutlar(W×D×H) | 42 × 205 × 205mm ( 1.7" × 8.1" × 8.1" ) | 270mm×205mm × 42mm (10.6" ×8.1"× 1.7") | |
Ağırlık ( HDD olmadan ) | 0.59kg ( 1.3 lb ) | ≤ 0.68 Kg ( 1.50 lb ) |
