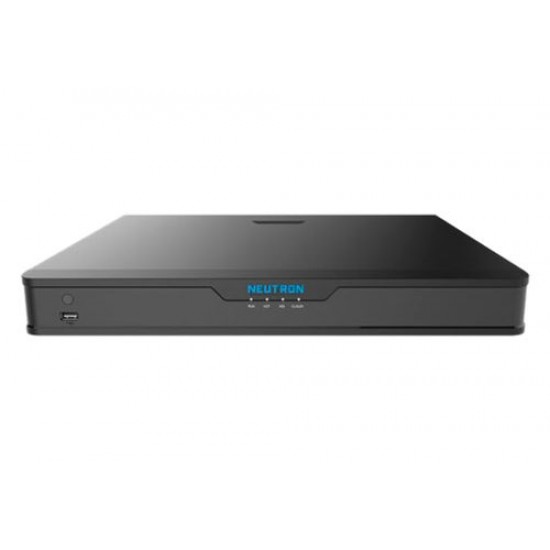

NEUTRON NVR302-16Q DİGİTAL KAYIT CİHAZI

NEUTRON NVR302-16Q DİGİTAL KAYIT CİHAZI
-41 %
NEUTRON NVR302-16Q DİGİTAL KAYIT CİHAZI
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
ModelNVR302-08QNVR302-08UNVR302-16Q
Video/Audio Input
Video Input8-ch, BNC8-ch, BNC16-ch, BNC
IP Video Input4-ch(only IP up to 12ch), each channel up to 4K8-ch(only IP up to 16ch), each channel up to 4K8-ch(only IP up to 24ch), each channel up to 4K
Supported Analog Camera TypesSupport AHD input: 8MP@15fps (channel1-channel2)
5MP@20fps
4MP@30fps
3MP@30fps(channel1 - channel2)
1080P@30fps
720P@60fps
Support TVI input: 8MP@15fps(channel1-channel2)
5MP@20fps
4MP@30fps
3MP@20fps (channel1 - channel2)
1080P@30fps
720P@60fps
Support CVI input: 8MP@15fps(channel1-channel2)
4MP@30fps
1080P@30fps
720P@60fps
Support CVBS input
Support AHD input: 8MP@15fps
5MP@20fps
4MP@30fps
3MP@30fps
1080P@30fps
720P@60fps
Support TVI input: 8MP@15fps
5MP@20ps
4MP@30fps
3MP@20fps
1080P@30fps
720P@60fps
Support CVI input: 8MP@15fps
4MP@30fps
1080P@30fps
720P@60fps
Support CVBS input
Support AHD input: 8MP@15fps(channel1-channel4)
5MP@20fps
4MP@30fps
3MP@30fps (channel1 -channel4)
1080P@30fps
720P@60fps
Support TVI input: 8MP@15fps(channel1-channel4)
5MP@20fps
4MP@30fps
3MP@20fps (channel1 - channel4)
1080P@30fps
720P@60fps
Support CVI input: 8MP@15fps(channel1-channel4)
4MP@30fps
1080P@30fps
720P@60fps
Support CVBS input
Audio Input1-ch, RCA4-ch, RCA1-ch, RCA
Two-way Audio1-ch, RCA 1-ch,RCA1-ch, RCA
Channel Associated Audio1-ch,RCA4-ch, RCA1-ch,RCA
Network
Incoming Bandwidth56Mbps80Mbps72Mbps
Outgoing Bandwidth64Mbps64 Mbps80Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output1-ch, BNC1-ch, BNC1-ch, BNC
VGA Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
4K(3840X2160)/60Hz,4K(3840X2160)/30Hz,
1920x1080p/60Hz, 1920x1080p/50Hz,
1600x1200/60Hz,
1280x1024/60Hz,
1280x720/60Hz,
1024x768/60Hz
1920x1080p/60Hz, 1920x1080p/50Hz,
1600x1200/60Hz,
1280x1024/60Hz,
1280x720/60Hz,
1024x768/60Hz
Recording Resolution8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback8-ch8-ch16-ch
Encoding
Recording Frame RateMain stream:
8MP Lite@8fps(channel1-channel2)
5MPLite@12fps
4MP Lite@15fps
3MP@15fps(channel1 - channel2)
2MP@15fps
720P@30fps
Sub stream:
D1@30fps(Max)
Main stream:
8MP@8fps
5MP@12fps
4MP@15fps
3MP@18fps
2MP@25fps
720P@30fps
Sub stream:
D1@30fps(Max)
Main stream:
8MP Lite@8fps(channel1-channel4)
5MP Lite@12fps
4MP Lite@15fps
3MP@15fps(channel1 - channel4)
2MP@15fps
720P@30fps
Sub stream:
D1@30fps(Max)
Recording Resolution8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H
/4CIF/CIF
8MP/5MP/4MP/3MP/1080P
/960P/720P/960H/4CIF/CIF
8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H
/4CIF/CIF
Hard Disk
SATA2 SATA interface
Capacityup to 10TB for each HDD
External Interface
Network Interface1RJ45 10M/100M self-adaptive Ethernet Interface1RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB InterfaceRear panel:1 x USB2.0,Front panel:1xUSB2.0Rear panel:1 x USB3.0,Front panel:1xUSB2.0
Serial Interface1 x RS485
Alarm In-8-
Alarm Out-4-
General
Power Supply12V DC
Power Consumption: ≤ 8 W( without HDD )
12V DC
Power Consumption: ≤ 12 W( without HDD )
Working Environment-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions(W×D×H)380mm ×315mm× 53mm (15" × 12.4"×2.1")
Weight ( without HDD )≤1.9 Kg ( 4.19lb )
